Keys To Using CNC Broach Tools

Setting up a broach tool to cut in a lathe:

Mounting the tool: We recommend mounting the tool in a boring bar sleeve. Split sleeves have the most accurate and solid connection when clamping on the shank of our tool. This is because they contact a full 360 degrees around the shank. We recommend using Rovi Products B style split sleeves. Learn why this is recommended here.

Rovi Products B style split sleeves

Solid sleeves can work as well, however when solid sleeves become worn out they are not nearly as accurate or rigid. Slop in the boring bar sleeve could allow the tool to chatter and deflect off center. MTA Boring bar sleeves with two sets of set screws 90° apart work best when using solid sleeves. This gives you 3 line clamping (the line formed by the two sets of set screws and the opposite side of the boring bar sleeve bore) and is the 2nd best option.

MTA Solid sleeve with 4 set screws

 If using a solid sleeve with only 2 set screws:

  • Always use a sleeve with a minimum of 2 set screws in line with our insert (not 90 degrees to the insert) to prevent taper in the ceiling of the keyway.
  • Never use a solid sleeve with only a single set screw. This creates a pivot point which allows the tool to deflect.
  • If your boring bar sleeve set screws do not orient onto our factory flat, you will need a different sleeve.
  • Always use a stop behind the butt of the tool to prevent it from slipping in the boring bar sleeve.

Always Dial in the tool’s orientation to be in line with the X axis: To do this, first remove the insert from the holder and find a gauge block that will fit into the insert pocket (any gauge block smaller than the pocket width will work). Lightly snug the set screws down just enough to hold the gauge block in place. Dial the gauge block in as shown in the image below. We recommend dialing in to within .0005”.

Once the tool has been dialed in rotationally along the X axis, dial in the front diameter of the tool in the Y axis. We recommend dialing this in to within .0005” as well. Once dialed in, replace the insert. Do not over tighten the set screws as this could cause the pocket to crack or spread open.

Setting up a broach tool to cut in a mill:

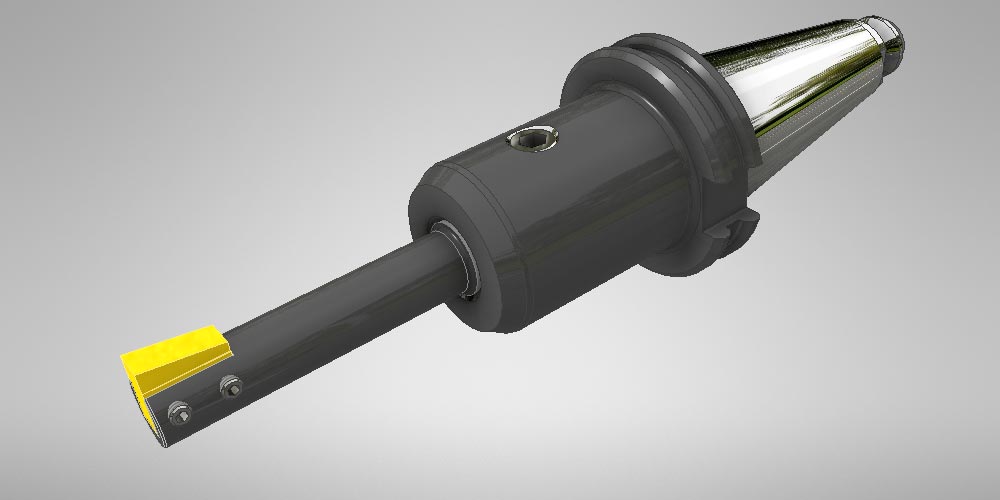

Mounting the tool: Our first choice when clamping a broach tool in your mill is to use a Hydraulic holder. Learn why we recommend using a hydraulic holder here. If this is not an option due to expense, a solid holder with a minimum of 2 set screws will work as well. Always use a solid back stop behind the tool to prevent it from pushing back. Rigidity is always key when broaching so we recommend using a CAT40/50/60 connection or Big-Plus connection. We only recommend using HSK when it is type A, and we do not recommend using a Capto connection.

  • How you clamp our tool is the difference between whether it works or not.
  • Never use a holder with just one set screw as it will create a pivot point and will most likely chatter.

Always dial in the tool’s orientation to be in line with either the X or Y axis: To do this, first remove the insert from the holder and find a gauge block that will fit into the insert pocket (any gauge block smaller than the pocket width will work). Lightly snug the set screws down just enough to hold the gauge block in place. Load the tool holder into the machine and orientate the tool using an M19. Once the spindle has been oriented, dial the gauge block into .0005” along the X or Y axis.

Once the tool is dialed in, replace the insert. Do not over tighten the set screws as this could cause the pocket to crack or spread open.

Blind holes, Blind Keyways, Thru holes, Clearance grooves, & Cross holes

When broaching a keyway, the cutting tool must pass completely through the material into open air before retracting out of the cut to prepare for the next cut. This is easy when broaching completely through a part, but can be tricky when broaching a blind keyway.

          Turned Undercut                 Cross Hole                 Milled Undercut

Warning – If you have a through keyway application but are broaching bar stock prior to it being parted off, you will still need clearance as shown above

Blind keyways are tricky! You must have an appropriate groove or cross hole relief

The pictures above show 3 options when dealing with a blind keyway. As we mentioned earlier, the edge of the insert must continue straight and must pass through the material into open air before pulling out of the cut. If the tool stops accelerating forward without first passing through into a clearance relief, the chips will be compacted in front of the tool and will cause issues. Therefore, you must use either an undercut, a crosshole, or a milled slot /undercut.

Turned Undercut:  This of course is the best option when in a lathe. We recommend the clearance groove to be at least .250” wide min (to allow for Z axis deceleration) and the diameter of the groove must be calculated to allow for the keyway width and radial depth. You can either do the math as shown below, or you can use our online Blind Keyway Undercut calculator which can be found here:  https://cncdirt.com/keyway-time-calculator/

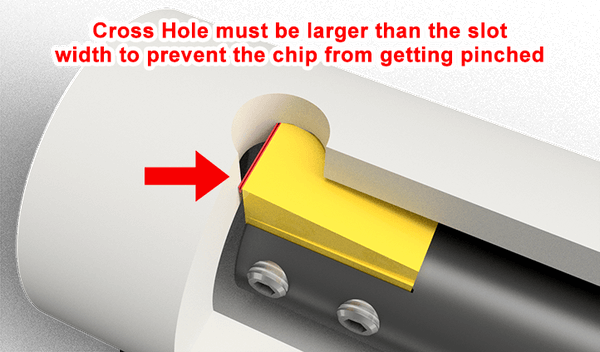

Cross hole: A drilled cross hole is a good option in both turning and milling applications. A crosshole can be drilled from the outside of the part. When drilling, we recommend using a drill which is at least 25% larger in diameter than the keyway width to allow for proper clearance. For example, a .250” wide keyway should broach into a cross hole that is at least Ø.3125”.

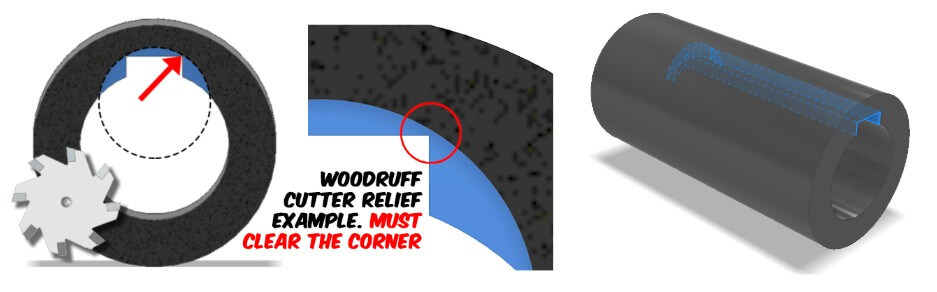

Milled Slot /Undercut: If a turned undercut or a drilled hole isn’t an option, we recommend milling a slot using a woodruff keyseat cutter. Just like the turned undercut, we recommend the clearance cut to be at least .250” wide (to allow for Z axis deceleration). The radial placement of the slot must be calculated to allow for the keyway width and radial depth of the keyway. There must always be clearance in the corners as shown below.

Programming:

    We have tons of resources on our website (cncbroachtools.com) to help you write your program. We even offer machine specific templates to make it easy. Here are our main “keys” to programming:

  1. Program the tool to drop down completely out of the keyway on the retraction
  2. We recommend taking .0008”-.0015” per pass
  3. We recommend feeding the tool at 250-450 IPM (inches per minute) on the rough passes and 150 IPM for the final finish pass
  4. Program the G01 starting point of the cut to be .625” in front of the part. This allows your machine enough space to completely accelerate to the programmed feed rate
  5. Program the end of the cut to be at least .125” past the end of the keyway. This allows space for the machine to decelerate in the clearance area as opposed to decelerating in the material.
  6. Once the cutter has passed through the material, program the cutter to pull completely down & out of the keyway prior to retracting out of the hole.
  7. We recommend using water soluble coolant with 15% concentration, especially for stainless and other hard to machine materials.
  8. Most machines have a G-code for exact positioning. G61 on Fanuc, for example, will check to verify positioning prior to starting the next move. If your application has too little room to allow for deceleration at the end of the cut and you are seeing taper in the end of the keyway, try using an exact stop g-code. If this g-code is not available, you may need to slow the feed down. To learn what causes taper at the end of your keyway, read our blog post titled “The Phantom Retraction

Questions and answers:

Why did my insert pull out of the holder?

We designed the insert to release from the pocket of the tool to protect the spindle when there’s not enough relief space. The insert MUST pass through the material into open air before pulling out of the cut. If your insert came out, this is a clue that you either:

  1. Have a programming issue
  2. Don’t have enough relief space
  3. The chips aren’t evacuating the relief space and you’re pounding into them (Our tool design may have just saved your spindle)

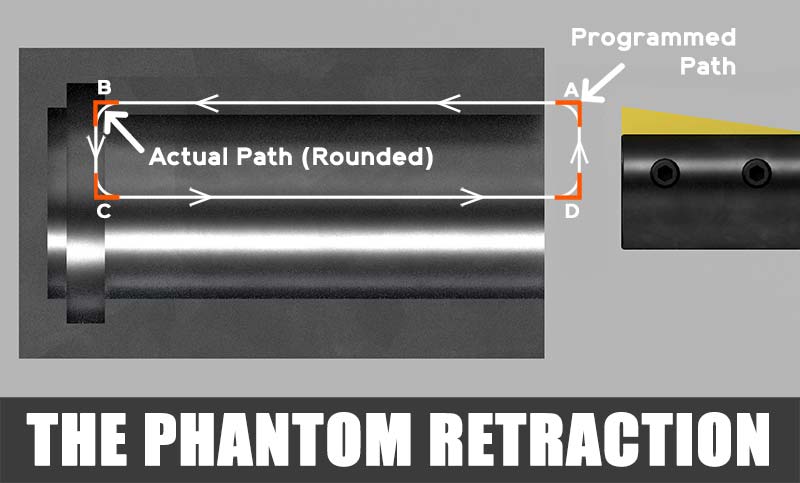

Why is there taper at the end of the keyway?

The machine does not have enough room to decelerate in air and is pulling out of the cut prior to reaching the full depth. To fix this you can either program the tool to cut deeper, slow down the feedrate, or add an exact positioning g-code to your program. Taper can also be caused by a work holding issue. Always verify your part is not moving or flexing while in the cut.

Changing set screws on my CNC Broach Tool

The set screws can wear down after a few months. If they appear to be flattened they may not grip properly.

Will CNC Broach Tools write my CNC program for me?

We do not have a full time programmer on staff. Instead, we offer machine specific programming templates. Check out: https://cncbroachtools.com/category/cnc-broach-programs/

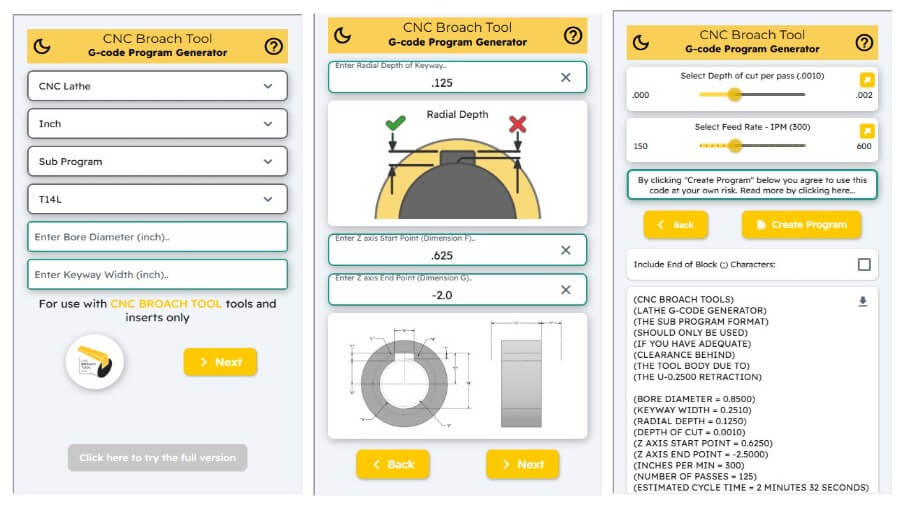

You can use our CNC broach G-Code Program Generator to export the G-code required for your broaching passes. This works for both CNC lathes and Mills

We also can connect you with a trusted associate who can help you overcome your programming/ technical hurdles for an hourly fee.

How many parts will I get per cutting edge?

One of the most asked questions we receive at CNC Broach Tools is in regards to broach insert life. For an in depth discussion on this we recommend you read our blog post titled “Insert Life of CNC Broaching systems“.

Will CNC Broach Tools create a custom shaped insert?

Yes, we have the ability to create custom inserts which include custom widths, custom splines, hexes, and others. These generally take 2-4 weeks to ship. Learn more at https://cncbroachtools.com/cnc-spline-broach/

More Q&A? Go to: https://cncbroachtools.com/cnc-broaching-faq/

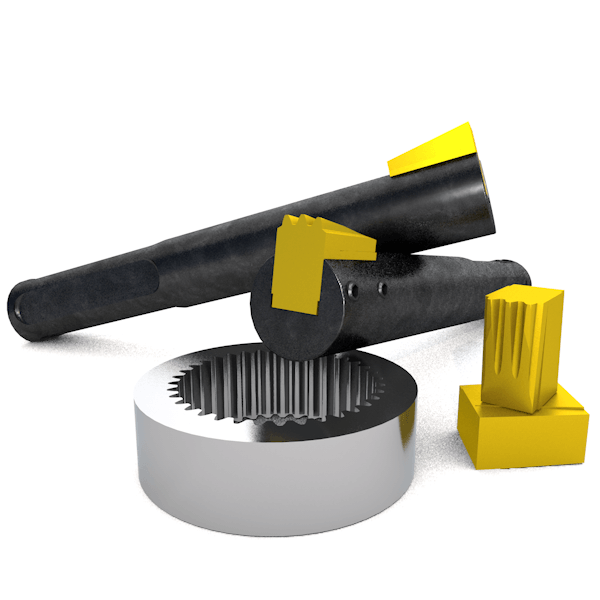

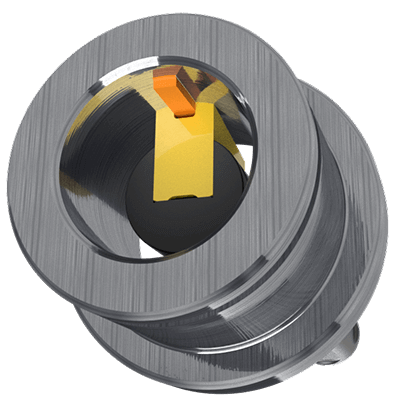

Special Spline Inserts:

All Spline Broach Inserts are a Special Grind with a 5pc minimum order quantity. Spline Inserts fit our standard Keyway Slotting Tools, and have TWO carbide cutting edges. Please provide a blueprint, DXF, or 3D model when requesting a quote.

  1. CNC Broach Tool will review your print. If a Spline Broach insert is right for your application, we will send you a quote.
  2. Once you place the order for the special Spline insert, we will prepare an approval drawing and email it to you for review
  3. After print approval, Spline Broach Inserts are 2-4 weeks to ship



Understanding the Height of Groove (H.O.G) Dimension:

When using our keyway insert chart on the next few pages,  please always check the “Height of groove” dimension. This is how high the insert sticks up above the tool to get the radial depth (not length). This depth dimension is different than the “length” depth and usually is not called out directly on drawings. It must be calculated by subtracting the dimension of the centerline of the bore to the top of the keyway from the overall bore size.

For clarity: A keyway or slot has three dimensions. 1). the width 2). the length (most people call this the depth, CNC Broach calls it the length to differentiate it)  3)  the depth, or the depth radially, or the Height of the Groove, or the ceiling of the keyway

There are many important dimensions which apply to broaching. When we talk about “Radial Depth” or “Height of Groove”, we are referring to dimension “C” as shown above

Looking for more help? We’ve teamed up with the creator of CNC Machinist Calculator Pro and added a Keyway Broach Cut Time Calculator into the app. Find it on your phone’s app store

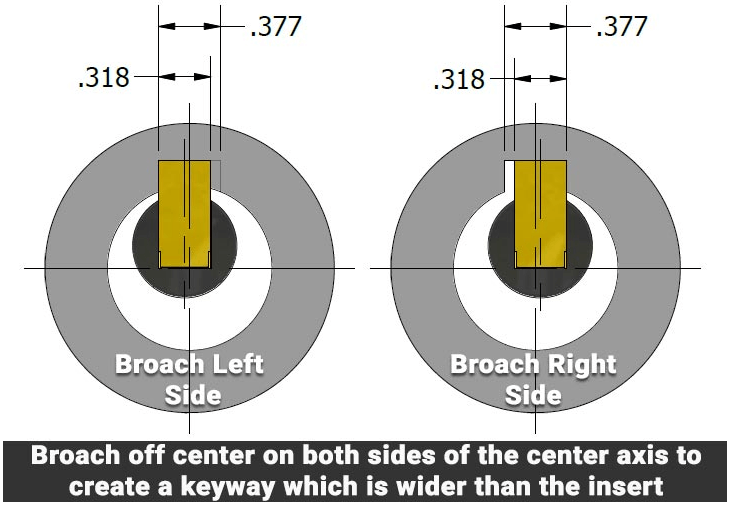

BROACH TOOL & KEYWAY BROACH INSERT DIMENSIONS

Broach tool dimensions can be found here

Always check your drawing against the Broach Tool Size page on our website & let us know the part #’s you’d like quoted. When choosing a tool and insert. You will need to know the following:

  1. Bore Diameter
  2. Length of Cut
  3. Key Width Tolerance
  4. Height of Groove Dimension

Contact Us Today:
Tel: (877) 248-1631Fax: (877) 410-7836Address:PO Box 569
Laguna Beach, CA 92652
